Do You Haul Heavy? ...Or Long & Heavy?

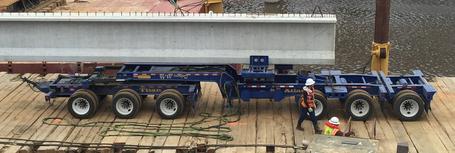

J3- 3 Axle “B” Jeep (Includes Pin On Axle)

Width To Customer Specifications.

Neck Rails - T1-3/4”x 6” Top Flange, T1- 1”x 6” Bottom Flanges with 3/8” 50 K Webbing.
Bed Rails - T1 -¾” x 6” Top & Bottom Flanges with 3/8” 50K Webbing.
Neck Rails – T1 – 1” x 6” Top & Bottom Flanges with 3/8” 50K Webbing.

Hydraulic Power Tower Bolster (8” of lift), (Hydraulic Power Received From the Steerable Dolly System)
with 3 Adjustable Settings.
Power Tower Bolster Assembly has 4 Position Beam Stop Adjustability.

Dual King Pin Settings. King Pin Height 48” Holland Mark V Landing Gear.
Three 25,000 Lb. Axles (3/4” Wall), 60” Spreads. (Includes Pin On Axle).
Ridewell 240 Air Suspension with Auto-leveling and Manual Override.
Manual Dump Valves on Each Axle. ABS with Type 30/30 Parking Brakes.
Steel Wheels with 275/70R22.5
Michelin 20 Ply Radial Tires.

DOT Sealed Wiring Harness with Rubber Mounted LED Lightings. 50’ of Air Line & 7 Wire Cable Socked
Removable Chain Tray Behind Bolster Tower.
Storage for Cable Bundle and Dunnage. Limit Chains Each Axle.
Standard Color of Choice with Logos

Jeep B
