Do You Haul Heavy? ...Or Long & Heavy?

Specifications

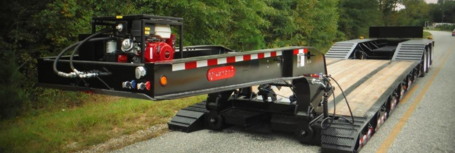

Removable Goose Neck - Model RN55-24D

Load Capacity: 110,000 Lbs. In 16’.

Weight as Specified: 19,650 Lbs. - Overall Length 51’6” - Width 8’6” (widening brackets optional)

Deck Dimensions: Height 24” Loaded. Adjustable to 16”, 19”, 21”, 23”, 24”.

Ground Clearance at the Various Deck Heights 4”, 6”, 8”, 10”, 11”. – Cambered Deck Length 24’

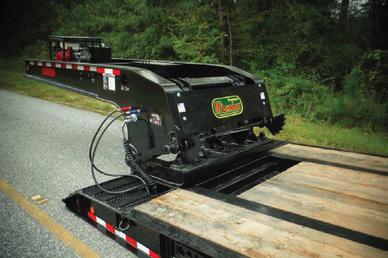

Removable Hydraulic Neck: Non- Ground Bearing Design. Dual Main Cylinders 8”.
Dual King Pin Locations 90” & 110”. 13 Hp. Honda Power Unit in Lockable Enclosure.
Quick Disconnects. Revolver Greaseless Coupling System.
Steel Non-Load Bearing Goose Neck Fenders. 110” Swing Clearance. Set Up for Wet Line.
Fifth Wheel Height 48”-52”. Kingpin Setting 18” with 96” King Pin Swing Radius.

Beams: Main Beam 16” Fabricated with Positive Camber (Std. Four I Beam Design)
Side Beams 16” Fabricated with Positive Camber (Std. Four I Beam Design)

Crossmembers: 8” I Beam Located on 20” Centers (Side Load Configuration Available)

Standard Front Deck Ramps: Tapered Slope with Traction Bars. (Flip Ramps Optional 18” & 30”)

Boom Trough: “V” Crossmembers with Steel Grating Center (Covered Bogie Optional)


Standard Wheel Wells: Open (Optional Welded Wheel Covers).
Sixteen 1” Lashing Rings (8 per side)
Flooring 1 3/4” Oak, Covered Outside/Open Center (Optional Center Flooring, Clips Instead of Screws).

Undercarriage: Air Ride with Auto & Manual Controls, 3.5” down & 5” Up.
(Hutch Four Point, Four Point 6 Spring Add 24” in Tandem Area, 53’ Overall)

Axles: 25,000 Lb. Capacity 77.5” Track, Auto Slack Adjust, Type 30 Brake Chambers,
16.5” x 7” Brake Pads, Outboard Drums, 49” Axle Spacing.
(Optional Type 30/30 Spring Brakes per Axle), Air Lift One Axle. 30/30 Parking Brakes

Tires: 275/70R22.5 Low Profile Radials with 8.25 x 22.5 Steel/Disc Hub Piloted Wheels

Toolbox: Front & Rear of Deck. Wiring DOT Sealed Harness, LED Lights, Rubber Mounted.  Mud Flaps. Flag Holders

Standard Color: Black ( 2 part Primer/2 part Polyurethane).

Removable Goose Neck
