Do You Haul Heavy? ...Or Long & Heavy?

Specifications

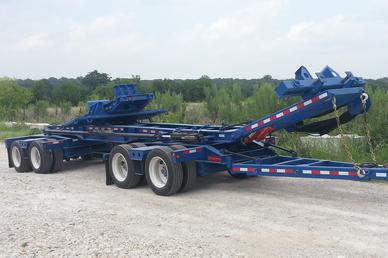

Four Axle Crab Steer Beam Hauler.

Width to customer specifications.
14’ - 1” Spread Between the 2nd & 3rd Axles, 100,000 Lb. GVWR.
Open Wheel Well Dollies, Push Bumper, 8’ Tongue with 3” Pintle Ring for Return.
Hydraulic Middle Bolster Assembly on Front (Power Assist with Raising & Lowering Tongue).
13 Hp. Honda Commercial Pony Motor with 1 Gallon Gas Capacity, 3000 PSI Hydraulic System,
5” Cylinder Steer System Controlled by Hardwired Pendant, RF Remote or Hand Valves.
Ridewell 240 Air Ride Suspension with Auto Leveling and Manual Adjustment, 25,000 Lb. Capacity Axles, Wabco
ABS, 275/70R 22.5 Michelin Radial 20 Ply Tires, Type 30/30 Parking Brakes, Steel Wheels.
Sealco Wiring Harness, LED’s (rubber mounted), 150’ Stowable Air Hose and 7 Wire Cable (socked).
Standard Color of Choice with Logo

4 Axle Crab
